Sympathetic Firing on Double set Doc 200 traps

We have started utalising double set Doc 200 traps. Quite often when we have a capture both traps will trigger. Is there any simple modifications that i could make in the field to reduce sympathetic firing? Pictures would be helpful!

Thanks for your time

2 Likes

Some advice that I received some time ago was to loosen the base-bolts that hold the trap in place. Just a little, or they become too difficult to re-set. It reduces the rigidity between the two mechanisms and seems to have MOSTLY fixed the problem of sympathetic trigger.

1 Like

Placing a decent sized rock on top of the box should help reduce sympathetic firing as it will absorb some of the energy when the trap fires.

Thank you, that is a simple solution, ill do some tests with that method.

Thank you, ill do some tests with that method and see how i get on

Hi. We have 100+ traps in double boxes and sympathy springing is an exception. We calibrate all our traps to spring at >=100g. When this is done we only get sympathy springing occasionally, even on uneven ground. We use a hacksaw blade and adjust the sear gap to the thickness of the blade. This is our solution.

But, there are often faults in DOC200 manufacture, which can affect performance.

Brian Bowell.

1 Like

Hi Brian, Thanks for that, I’ve calibrated ours to slightly less than that, so that could be the answer as to why we have so much sympathy firing.

Tom

Agree with Brian. We have about 350 double-set DOC 200s. Sympathetic spring off is VERY rare for us. We calibrate to about 80 grams.
I think it’s very important that the trap be very stable and rigidly set in place. We will use a spade to level an area and then bed the trap into the dirt well. We use stakes in areas where stock interference is possible. Overall we have excellent success with the double DOCs; they’re quite likely to catch a rat and a stoat and there have been the occasional double-mustelid kills. Very satisfying!!

2 Likes

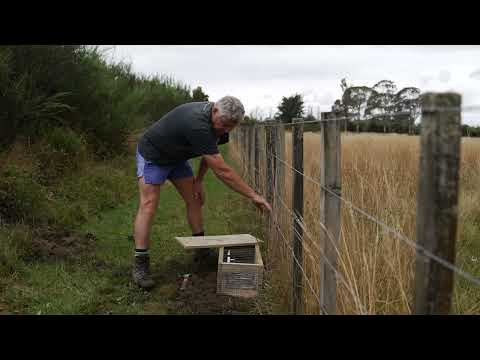

Cam Speedy has a series of short videos.
This one is a summary of points above.
